MLB-750 Automated Blasting Cell




MLB-750 medium footprint system for any sized company. Machine is designed to be configured for any manufacturing needs for wet blasting of parts. It was developed to be friendly for operator and programmer. Capable of handling part weight up to 10 kg. Machine is designed to handle most complex of shape parts. Can be configure for single or multiple blasting guns to save operation time and aces hard to reach areas. Automated blasting can deliver more consistent finish and better throughput with less man power required.

Standard Equipment Configurations

Robot:

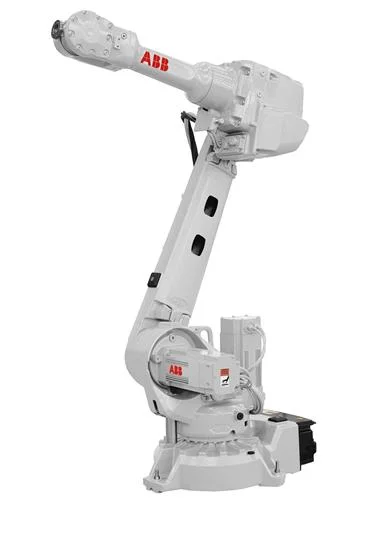

  • ABB IRB-2600 – 20 kg. / 1.65 m.



Process Equipment:

·         30x25 inch blasting cabinet

·         2 Guns standard

·         12 mm tip ID blasting guns

·         Standard high-volume pump for up to 3 guns

·         12 ga. 304 SS enclosure

·         Closed loop filtration

·         Flexible gun adjustment

·         Minimum 60 cfm air pressure

·         Water tight LED lights

·         Post process rinse

·         Post process air blast

·         ABB IRB 2600 20 KG

·         ABB IRC5 controller

·         Electrical controls cabinet

·         Build in HMI in to ABB Teach pendent

·         Safety package

·         3 jaw or 2 jaw gripper

·         Part loading/unloading indexer

·         Safety stock light

·         Safety loading unloading zone

·         Loading unloading main plate

·         Single part process programming

·         Part fixture

·         Maintenance access door

·         Steel base

·         Safety fence

·         Machine light

·         Incoming air filter system with build in low pressure alarm

Optional:

·         Blast walls

·         Additional 1 blast gun 3 total max

·         Upgraded SS high-volume pump

·         Abrasive density meter for high process control

·         Additional parts programming and fixture

·         Conveyor parts unloading

·         Quick tool change

·         Automatic part program detection
